Overview

Basic Info.

Sheath Material	Xlpo/XLPE
Insulating Material	XLPE
Conductor Type	Stranded
Brand	Mosstee
Certification	TUV
Wire Core Material	Aluminum/Tinned Copper
Working Temperature	90°
Length	Customized
Color	Red/Black
Standard	TUV 2pfg 1169, En 50618, IEC 62930, UL 4703, TUV 2
Transport Package	Carton
Specification	1/1.5/2.5/4/6/10/16mm2
Trademark	Mosstee
Origin	China

Packaging & Delivery

Package Size80.00cm * 30.00cm * 30.00cm Package Gross Weight1.000kg

Product Description

Description:

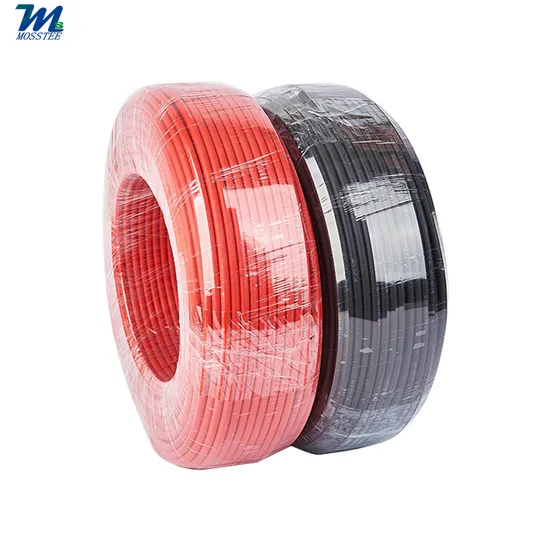

AC: 0.6/1 kV, DC: 1500V XLPO/XLPE insulated, LSZH/XLPE sheathed, single core and double cores cable

Solar Cable are used for the transmission of electricity between solar panels (solar cells) and inverters. It converts direct current into alternating current to supply electricity to homes, businesses and public facilities, etc. Solar cables are characterized by high heat resistance, cold resistance and UV resistance, and can operate in a variety of harsh environments. Solar cables are widely used in rooftop solar power plants, large solar power plants and solar light applications.

Technical Data:

Max. Operating Temperature: -40°C to +90°C

Max. Storage Temperature: +40°C

Min. Temperature for installation handling: -25°C

Voltage Rating: 0.6/1kV(AC), 1500V(DC)

(20 ± 10) °C Min. bending radius D<12: 3 x D

(20 ± 10) °C Min. bending radius D>12: 4 x D

Code:

PV1-F, H1Z2Z2-K

Construction:

Sheath: XLPO/XLPE

Armor: /

Filler: /

Insulation: HFFR/XLPE

Conductor: Fine stranded (Class 5) tinned copper/aluminum alloy conductor

Standards:

TUV 2PfG 1169, EN 50618, IEC 62930, UL 4703, TUV 2PfG 2642

Application:

They are designed for connections between various system elements such as solar panels and inverters in photovoltaic applications.

Product Description Product Parameters

Cable Types	No.	P/N	Standard	Conductor Type	Cores	Insulation	Bedding & Filler	Sheath	Rated voltage
Solar Cables	1	PV1-F	2PfG 1169	Cu	1,2	XLPO	/	XLPO	AC: 0.6/1 kV DC: 1800 V
	2	H1Z2Z2-K	EN 50618						AC: 0.6/1 kV DC: 1500 V
	3	/	IEC 62930						AC: 0.6/1 kV DC: 1500 V
	4	/	UL 4703	Cu / AA8000		XLPE		XLPE	1000 V / 2000 V
	5	/	2PfG 2642	AA8000		XLPO		XLPO	AC: 0.6/1 kV DC: 1500 V
